Rock Sockets
Deep Foundation Strength
Anchored in Bedrock

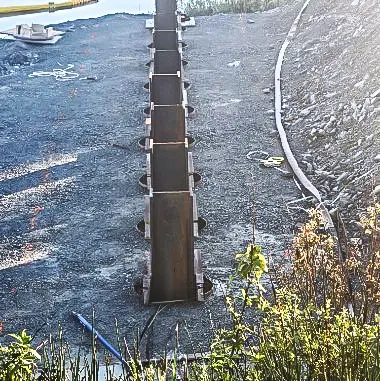

Rock sockets are a specialized foundation technique used to anchor piles directly into solid rock, offering exceptional strength and stability in challenging ground conditions. Also known as socket piles, this method is ideal when upper soil layers are weak, unstable, or unable to handle high structural loads. By embedding the pile into bedrock, rock sockets allow for greater resistance against both compressive and tensile forces—making them particularly useful for projects that demand long-term reliability under heavy or dynamic loads.

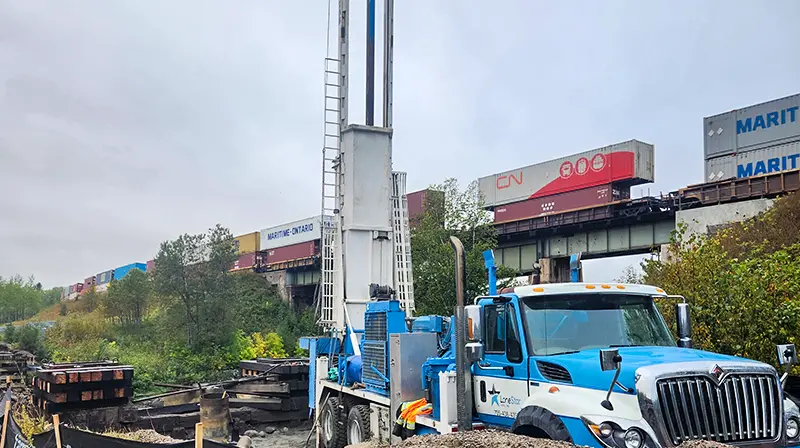

At Lone Star Drilling, we routinely use rock sockets in infrastructure and bridge support applications, including cases where 24-inch casing is socketed up to 3 feet into bedrock for load-bearing performance. This approach is especially valuable in environments like sloped or shallow rocky terrain, where standard piling methods may fall short. It’s also frequently used in offshore and waterfront projects that require precise anchoring into seabeds or other hard geological formations.
The construction process begins with drilling a borehole through the overlying soil and into the rock layer. A socket is drilled to create space for reinforcement. High-tensile steel bars are then placed within the socket to enhance the pile’s ability to resist uplift, shear, and lateral forces. Once the reinforcement is in place, the socket is filled with high-strength grout or concrete, forming a tight, permanent bond with the surrounding rock. This anchorage increases the pile’s load capacity and improves overall structural performance.
Rock-socketed piles can be constructed using various materials, including concrete piles and steel H-piles, in certain applications. The choice of material and the dimensions of the rock socket—its diameter and embedment depth—are carefully determined based on the rock’s properties and the structural demands of the project.
By creating a stable interface between the foundation and the underlying rock, rock sockets provide unmatched stability and durability. Whether supporting bridge piers, towers, or structures, they offer a reliable solution when conventional foundation methods aren’t enough.
